Dear Customer,
we are happy to announce you the launch of our next generation of XENSIV™ Radar 24GHz DEMO kits with Sense2GoL Pulse and Distance2GoL.
Following the said launch, please be informed that these XENSIV™ Radar 24GHz demo kits are therefore discontinued: Sense2Go, Sense2GoL, Distance2Go and Position2Go.
We are transferring our support capabilities towards the new kits. For the discontinued kits, we will reduce and eventually stop our support including telephone, chat, community support forum, or e-mail inquiries. We apologize for any inconvenience caused.
Please find all needed information on all our 24GHz radar products and kits on www.infineon.com/24ghz.
Sincerely,
Your Infineon team
Dear Sir,

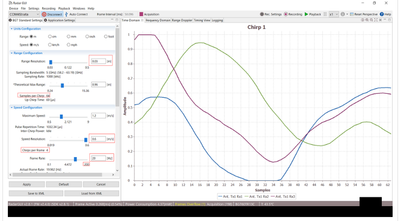

Can BGT60ATR24C change Frame rate ?
I have an BGT60TR13C sensor, and my radar SDK version is v3.2.1, it's only have presence detection and segmentation example apps, is radar SDK(v3.2.1) has capable(APIS supported or existing algorithm) to get rate & breathing rate? and would you share me the example codes?
Show LessHello i use Radar fusion GUI do recording and get the xx.raw.txt data.
# Are_Rx_Antennas_Interleaved = 1
# Modulation_Type_Enum = 1
# Chirp_Shape_Enum = 0
# Lower_RF_Frequency_kHz = 6.0238e+07
# Upper_RF_Frequency_kHz = 6.0762e+07
# Sampling_Frequency_kHz = 1000
# ADC_Resolution_Bits = 12
# Are_ADC_Samples_Normalized = 1
# Data_Format_Enum = 0
# Chirps_per_Frame = 64
# Samples_per_Chirp = 64
# Samples_per_Frame = 12288
# Chirp_Time_sec = 6.89875e-05
# Pulse_Repetition_Time_sec = 0.000505637
# Frame_Period_sec = 0.1
# Frame_Number = 19491
0.4884
0.484005
0.477167
0.47326
0.477656
i know the data (0.484005) from analog signal do ADC convet it to value in [0, 1] in default setting.
while i have some question about the raw data.
=> first question about the data, what does the value 0.484005 or 0.477167 means?
does it means the amplitude of the size in analog signal after convert to digtial signal?
=> second question, does the radar sensor data can convert to point cloud data, if yes, how can i do that with SDK api.
thanks
Show Less
Hi every one,
My questions are about the KIT BGT60TR13C EMBEDD( https://www.youtube.com/watch?v=pUuSCDY14nw)
By downloading the config tool on this page, one can raise an alarm if a presence is detected. Also, the config tool returns the range of the detection.
My objective is to get the raw data from the MADC integrated in the BGT60TR13C chip with this KIT BGT60TR13C EMBEDD.
Is it possible ?
I don't know if it is possible because I think that puzzle pieces are missing:
- I have downloaded the modus toolbox and the BSP of this product is available in the project creator under PSoC6 BSPs but there is only an HelloWorld and an empty project, there is no project allowing presence detection.
- The config tool available online allows to reflash the board, but I could not find the bin file firmware anywhere on the web. Does anyone manage to find a firmware for this board and reflash the board with it ?
- Also, I could not find the board schematic. I only know that the MCU is a PSoC6, that the radar chip is the BGT60TR13C and that those two components are linked with SPI communication.
Thank you very much in advance for your help
Show LessDear Infineon Community,
I am a researcher at the Universidad Politecnica de Madrid. I am currently uing the radar sensors BGT24MTR11. I have designed some PCBs with a radar system based on the chip BGT24MTR11. I have encountered a problem measuring the output power at the TX, TXX outputs. I measure -15 dBm, in stead of the 10 dBm written in the datasheet and application notes. I explain below the techniques followed to carry out the measurements.
To measure the putput power at TX and TXX ports of BGT24MTR11, the TX and TXX outputs of one of these PCBs are not connected to an antenna. They are connected to an spectrum analyzer (using microstrip line, a connector and a cable). In more detail, the connection is TX output - matching network presented in pag 20 of the datasheet of BGT24MTR11 - 50 Ohm microstrip line (2 cm long) - 50 Ohm southwest connector - Cable - Spectrum Analyzer.
-The stack-up of the PCB is the same as the one presented in pag 20 of the datasheet of BGT24 MTR11 (0.254 mm layer of Ro4350B).
-The 50 Ohm transmission line is simulated. The losses introduced are around 0.2 dB in the frequency band.
-The connector is measured. The losses introduced are smaller than 1 dB in the frequency band.
-The cable is measured. The losses introduced are smaller than 0.5 dB in the frequency band.
-The complete system (including matching network, transmission lines and connectors) is simulated. The losses are smaller than 1.5 dB in the frequency band.
-The resolution bandwidth of the spectrum analyzer is set to 8 MHz.
Using this configuration,
-I bias the BGT24MTR11 with 3.3 V.
-I configure the chip through SPI according to pag 17 of the datasheet. I use the configuration word 0x0008. I observe that the current consumption changes from 130 mA to 170 mA (approximately).
-At the input of the VCO (fine and coarse pins) I insert a DC voltage generated with an external source. I observe a power of approximately -15 dBm in the spectrum analyzer. The output frequency varies with the voltage at the input of the VCO (from 21.8 GHz at 0.5 V to 26.8 GHz at 5 V). There is no frequency where the output exeeds -10 dBm.
I have tried to configure the chip with different words. For instance, using 0x000F I observe that the output is reduced 9 dB (I measure approximately -25 dBm). I have also tried in the switch off configuration, measuring a power of approximately -50 dBm. Thus, it seems that the chip is being programmed correctly.
I have tried to read the output power sensor as explained in pag 18 of the datasheet. For this measurement I use the configuration words 0x00C8 and 0x0048. I read Vreftx = 1.87 V. Vptx = 2.3 V. Thus, DeltaV = 0.43 V. Thus, Pout ~9 dBm. It seems that the chip is providing the correct output power.
Can someone provide any hints about what can be going on? Has anyone encountered the same problem? Any other information I should provide, I will be happy to.
Thanks for the help.
Ignacio
Show LessHas anybody tried to install ifxdaq on a nvidia jetson nano?
I gave it a shot but I got an error which says the platform was not supported. Any workarounds?
Show LessHi all,
Regarding the BGT60LTR11AIP Autonomous reference design board and the SPI configured reference Design board,
If there are any documents(Schematics, BOM, Gerber, etc.), please let me know where they are.
There aren't in "BGT60LTR11AIP-DOC-HW-SW_V2.8.1".
Best regards,
H.N
Hey
Is there a way to view the recorded radar data captured in the "Radar Fusion GUI" in matlab signal analyzer app?
They are saved as a .json and raw.bin files which matlab can't read
thanks 🙂
Show LessHi
I am having trouble uploading the firmware for my BGT60TR13C with attached demo board
When it arrived and I plugged it into my pc a green blinking LED was on, I then tried to flash the firmware in "Radar Fusion GUI" and since then the green LED has stopped blinking and the flash failed
The PC recognizes something is plugged in because of the noise it makes when i connect the board via USB, however trying to use the "RDK-TOOLS UpdateFirmware" tool the error EXIT 0 (or sometimes 4): Cannot Find Device
I want to try to reset it by conecting the 3.3v pin to the Erase pin, but I'm unsure how to connect them
If anyone could point me in the right direction that would be great
Cheers
Show Lessrecently, i bought one device of BGT60TR13C.
i prefer do some breathing & heart rate research by using this mmwave device. does this device can provice some guide or method for the related feature.
