Hi,

We have the Vehicle CAN at P20.7(RX)/P20.8(TX) and using the Triboard Tc387 for the time being.  When looking at the below table I dont see the P20.7 RXD as can wakeup pin. Does it mean that I need to change my VCAN to P14.1(RX)/P14.0 or is there any other way to stick with P20.7?

Also I have the  below SCR files but scr_wcan.h is missing. Please help me on this scr_wcan demo files?

Thanks,

I am using TC377 board, I want to profile a function. How many clock cycle does it run ?  Not sure how to do that.

Thanks.

Mike

Hello,

I have 2 projects ( bootloader and app ) for TC275 and want to flash both with debug symboles.

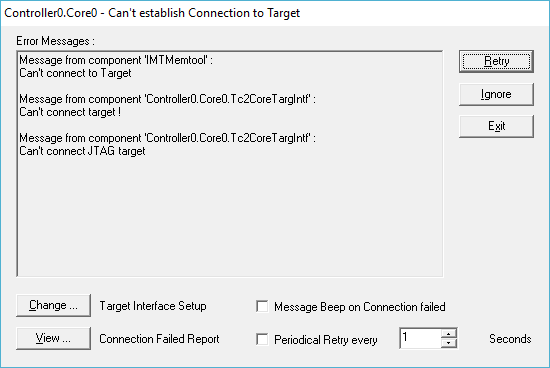

IDE gets stuck at this stage

I setup the app project like it is showing in the picture

I used to set it up in STM32CueIDE but not sure how in AURIX IDE

Please advice on how this can be acheived

hello

i am working on project where i am using AurixTc375LK.

I need the information on how can i get SIP for the controller?

Do i need to pay any cost for that or is it free?

We have selected TC375TP96F300WAALXU MCU for the development, Any pinout tool suggestion (Similar like XMC pinout tool)will be useful for pin mapping.

英飞凌的三款芯片SAK-TC275T-64F200W CA,
SAK-TC275T-64F200N DC以及SAK-TC275T-64F200W DC,能大致介绍下它们什么区别吗，如果平时用的是200W DC,能不能直接用其他两款

Hi Infineon Expert:

I currently using the official Infineon iLLD library code, the QSPI polling method takes about 10us to read, I want to find a QSPI operation code based on register operations to improve the reading speed, please support, thank you!

Is there a KIT_AURIX_TC223_TRB EVM design circuit diagram? OR-CAD, PADS, Altium etc. Only PDF files. I think having a circuit diagram would help us develop it
